Fuel Cell Systems

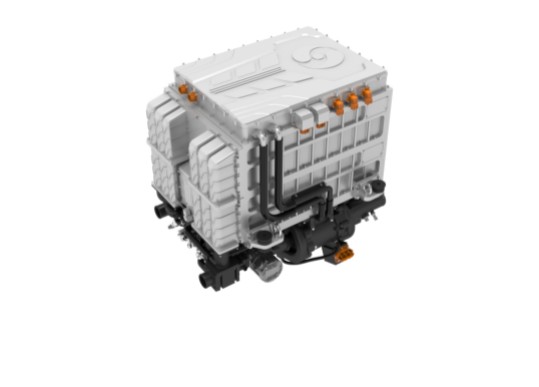

SynRoad H240
SynRoad H240 system is a high-power system product independently developed by Sino-Synergy, internal equipped with self-developed SynStack GIII, the product has the following highlights: (1) High compatibility. The first to adopt the modular design concept in the industry, the system integrates multiple stacks into modules to deliver 100-400 kW power output. More systems can be wired in parallel to achieve 100,000,000 W level system output; (2) High efficiency. With a rated working efficiency of 48% and max working efficiency 61%, the system has attained the leading level in the industry; (3) High power. Synroad H240 system features a peak power of 270 kW, the highest of its kind in the industry in term of single-unit power, meeting the power requirements of such vehicles as heavy-duty trucks; and (4) Vast application. The design standard covers such scenarios as road transport, rail transport, ships, movable power stations and fixed power generation.
Designed for Commercial Vehicles
Designed for Commercial Vehicles
Easy Maintenance
Adapt to Bad Working Environment
Fast Dynamic Response
Long Lifetime
Rated Power(kW) Weight(kg) Dimension(mm) Voltage(V) Current(A) Mass Power Density(W/kg)  IP Grade
240 350 1166×785×907 500-720 0-600 906 IP67
